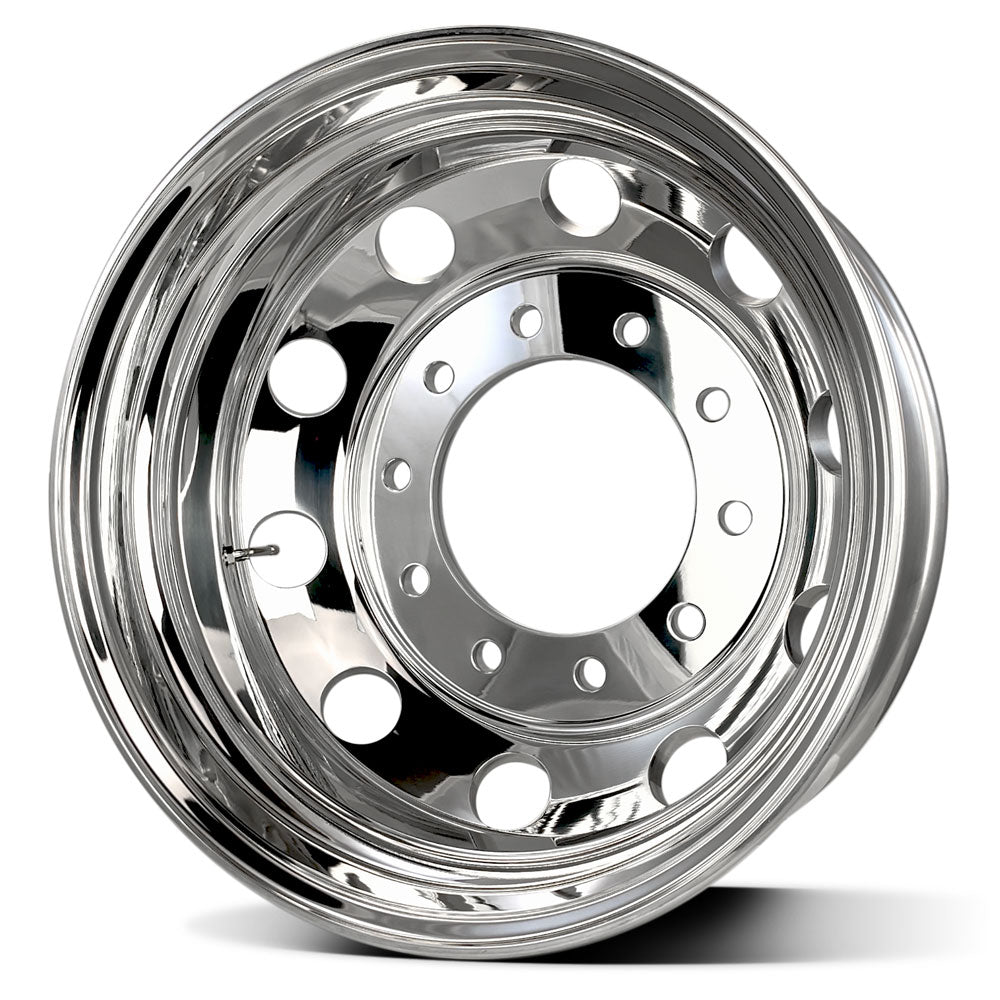

22.5x7.5 Northstar 10x285mm Hub Pilot Mirror Polished Both Sides

22.5x7.5 Northstar 10x285mm Hub Pilot Mirror Polished Both Sides

10 on 285mm10R22.511R22.515off22.5 Diameter22.5" Wheels235/80R22.5245/75R22.5

Specifications

Finish	Mirror Polish
Material	Aluminum (6061 Fully Forged)
Bolt Pattern	10 x 285.75mm
Mounting Set Up	Hub-Piloted Dual
Wheel Diameter	22.5" Wheel

Northstar manufactures quality heavy duty wheels for the commercial trucking industry. Their fully forged rugged style strikes the balance between grit and grandeur. They have a selective focus on aluminum wheels that allows them to deliver a safe, tested and durable product at an honest . Northstar is leading the way in pursuit of reliability and resilience, polished to perfection.

Wheel Specs:

Material: 6061 Fully Forged Aluminum
Finish: Mirror Polished Both Sides
Position: All Position (Front, Rear or Trailer)
Mounting Set Up: Hub Pilot Dual-Mounting
Wheel Size: 22.5" x 7.50"
Bolt Pattern: 10x285mm
Hub Bore Diameter: 220.1mm

Hand/Vent Holes: 8
Wheel Offset: 6.28"
Backspacing: N/A
Disc Thickness: .92"
Weight: 53 lbs
Max Load & Inflation: 7300 lbs @ 130 psi
Installed Valve Stem: TR555D

Additional Information:

Fits These Applications:
Freightliner M2 (some models)
International 4300 (some models)
Ford F650 (some models)

Approved Tire Sizes:
235/80R22.5
245/75R22.5
255/70R22.5
265/75R22.5
275/80R22.5
9R22.5
10R22.5
11R22.5

Replaces Parts:
873607

873601

873602

28844
