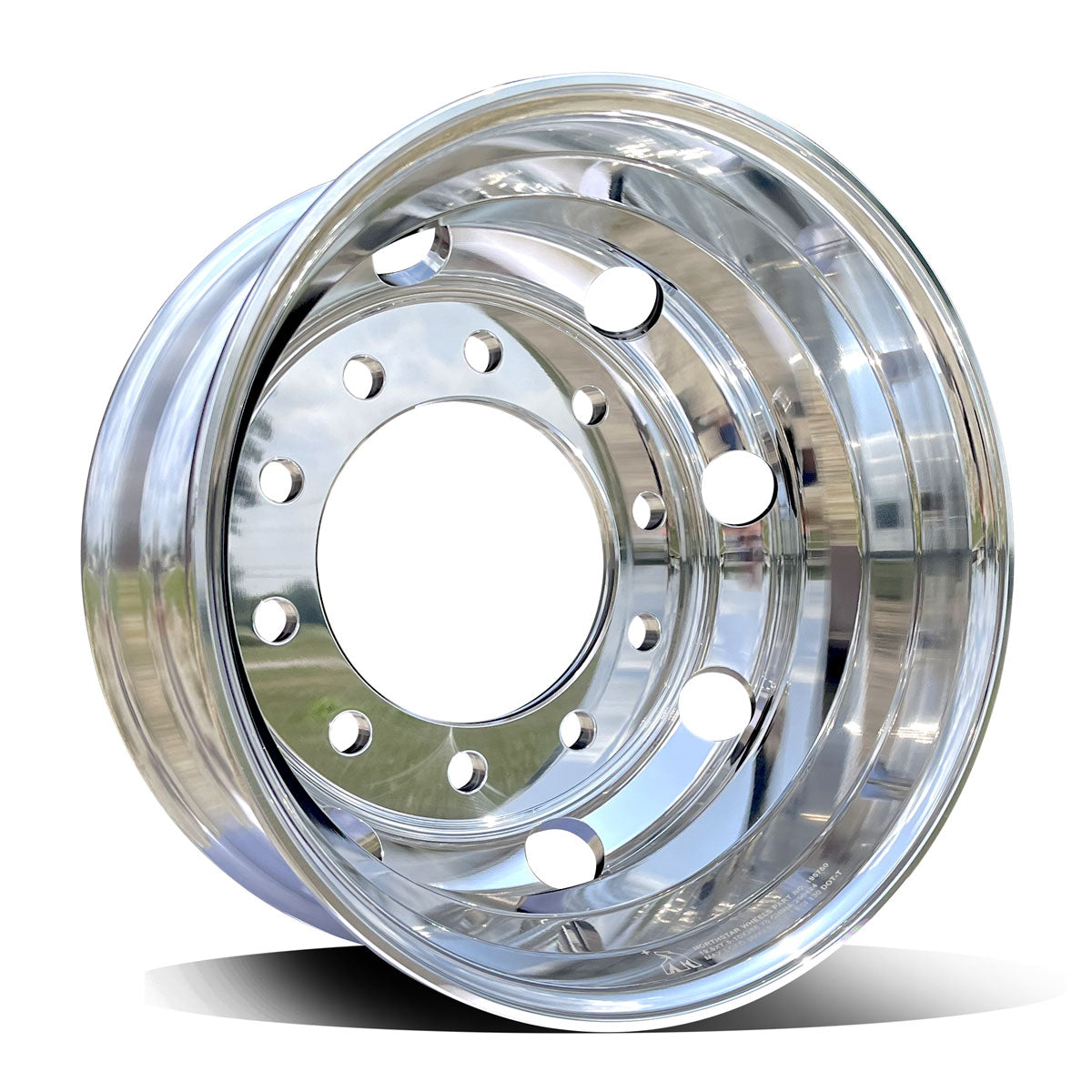

19.5x7.5 Northstar 10x285mm Hub Pilot Mirror Polish Both Sides
Specifications
| Finish | Mirror Polish |
| Material | Aluminum (6061 Fully Forged) |
| Bolt Pattern | 10 x 285.75mm |
| Hub Bore Diameter | 220mm |
| Max Load | 6700 lbs |
| Weight | 42 lbs |
| Valve Stem | TR553C |
| Mounting Set Up | Hub-Piloted Dual |
| Wheel Diameter | 19.5" Wheel |
10-Hole, 285.75mm Bolt Circle, 220.1mm Bore
Hub-Piloted Dual-Mounting
Two-Piece Flange Nut
Weight: 42 lbs
Max Load & Inflation
6700lbs @ 130psi
Installed Valve: TR553C
Wheel Offset: 5.23"
5 Year Warranty
Replaces Part: 773600, 773607, 773627
Recommended Tire Size:
- 245/70R19.5
- 265/70R19.5
- 285/70R19.5
Interested in this wheel?
Contact us or find a dealer near you.
